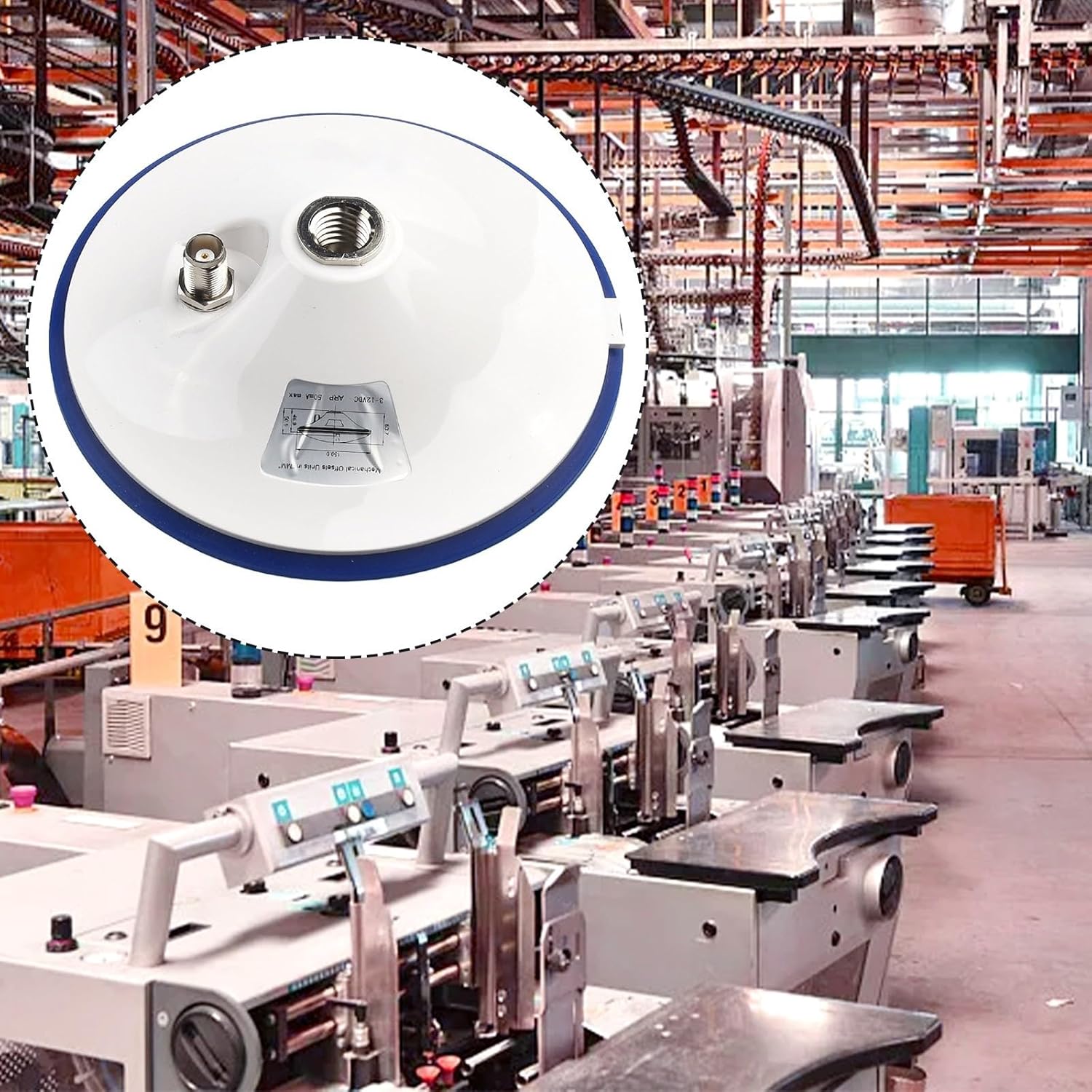

GO100 Multi-Band GNSS GPS Antenna With High Gain RHCP Support For GPS L1 L2 GLONASS G1 G2 Beidou B1 B2 B3 For Galileo E1 E5b Compatible For Trimble-AG15 AG25 AG35

Features:* and * Made of materials, * GO100 is a high- for GNSS antenna that supports the four major global navigation of GPS GLONASS BDS and for Galileo, and supports GPSL1 L2 GLONASS G1G2 Beidou B1B2B3 and for Galileo E1 E5b. The antenna has the characteristics of high gain, good gain at low angles, large circular polarization angle, and stable phase center. It is suitable for high- for surveying and mapping, and is widely used in automated agriculture, geodetic surveying, road construction, survey, terminal container operations and other for occasions. The new GO100 uses a high-strength ABS shell and a design that can greatly extend the service life of the antenna.* The antenna part adopts a multi-feed point design to for ensure that the phase center and the geometric center coincide, minimizing the of the antenna on measurement errors;* The antenna unit has high gain and wide beam pattern, the reception of signals at low angles, and can still search for stars normally in some situations with severe obstruction;* High and low temperature resistance, , and anti- cover provide for protection for the antenna when working in the field for a long time.Specification:Antenna specifications:Working frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 GalileoE1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage angle: 360°Output standing wave ratio: ≤1.5Antenna AR: ≤3dBPhase center error: ≤2mmLow Noise Amp lifier Specificationsfor LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Working voltage: +3V~+15VWorking current: ≤45mAConnector: TNC-KAntenna size (mm): Ф150mm×63.7mmWeight (g): 380gworking environment:Working temperature (℃)-40℃: ~+70℃Storage temperature (℃)-55℃: ~+85℃grade: IPX67Package Included:1 * QT150 GNSS Antenna

• 【High Precision GNSS Antenna】The GO100 is a multi-band GNSS antenna that supports GPS, GLONASS, BDS, and for Galileo. It ensures high precision and stable phase center for accurate surveying and mapping.
• 【Sturdy and Waterproof Design】Made of high-strength ABS material, the GO100 antenna is sturdy and can withstand harsh working conditions. Its waterproof design extends the service life of the antenna.
• 【Multi-feed Point Design】The antenna part adopts a multi-feed point design, minimizing measurement errors and ensuring the phase center coincides with the geometric center.
• 【Wide Beam Pattern and High Gain】The GO100 antenna has a wide beam pattern and high gain, allowing for reception of signals at low-elevation angles. It can still perform effectively even in obstructed environments.
• 【Wide Compatibility and Easy Installation】The GO100 antenna supports multiple frequencies and is compatible with various systems. It is easy to install and suitable for applications in automated agriculture, geodetic surveying, road construction, and more.
